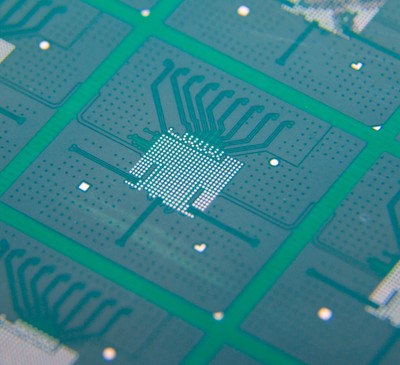

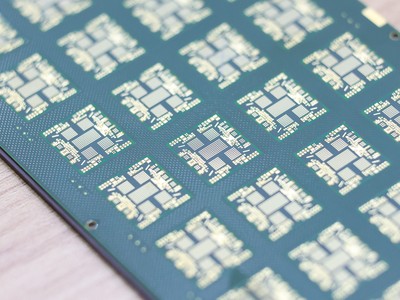

6 Layers FC-BGA
Layer: 6
Surface treatment: Plating Soft Au
Material: HL832N

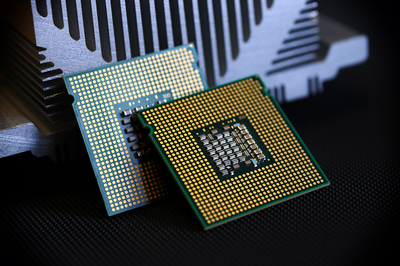

Application: CPU
Min line width/space: 25um/40um
Special: FC-BGA
上一页 1 下一页
Product Center
——

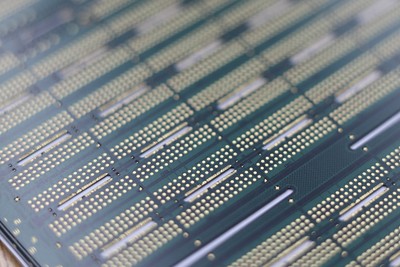

6 Layers FC-CSP
Layer: 6
Surface treatment: Plating Soft Au
Material: HL832N
Application: SSD
Min line width/space: 30um/30um
Special: FC-CSP
上一页 1 下一页
Our Design Capabilities
  • Single-sided, double-sided and Multi-Layer boards (up to 24-Layers)
  • High-speed digital designs (DDR memory, differential pairs, matched lengths routing)
  • Signal integrity, impedance control, and EMI protection
  • Sensitive analog and mixed designs
  • High-density designs (HDI), laser microvia, via-in-pad, blind and buried via technologies
  • Stack-up design
  • Fine pitch BGA layout
  • SMT, through-hole, and mixed-technology
  • Complex physical design rule checking (DRC)
  • Ground/Power planes, split planes, and isolated planes
  • Matched length traces, differential pairs, and controlled impedance traces
  • Hand-routing and auto-routing
  • Design for manufacturability (DFM)
  • Design for testability (DFT)
  • Library development
  • 3D model creation
  • Manufacturing support

Why You need PCB Clone Service?

PCB copying is a cost effective way to make multiple copies in pcb production process. You may need to make multiple boards for product testing, create a few sample boards for customers, or you may be building boards for mass production. In each case, cloning the PCB can easily create the desired number of boards with minimal effort. Additionally, if you have an old design that is no longer available, you can clone the PCB to create new boards from the old design. Below are all benefits that you can get from our pcb cloning service:

  • Make changes or improvements to the original design;
  • Create multiple copies of a PCB for mass production;
  • Make an identical copy of an existing electronic product;
  • Make a PCB with modifications from an existing PCB;
  • Create a PCB from a design;
  • Make a backup in case the original is lost or damaged;
  • Test a design before manufacturing;
  • Fix damaged tracks;
  • Replace missing electronic components;


产品展示

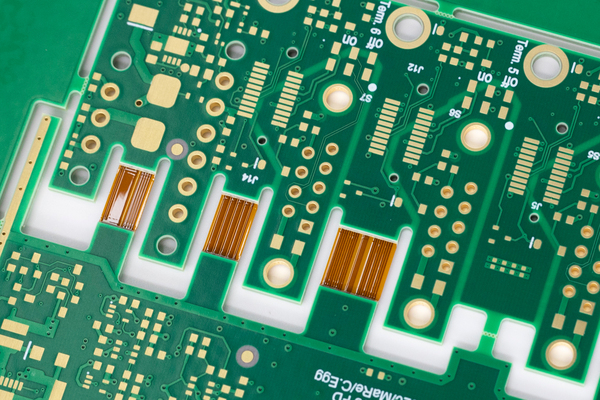

10 Layers Rigid-flex board for industrial communication
Layer: 10
Surface treatment: ENIG
Material: S1000-2M+AP8535
Application: Industrial Communication
Min line width/space: 0.1mm/0.1mm
Special: 10 layers Rigid-Flex design

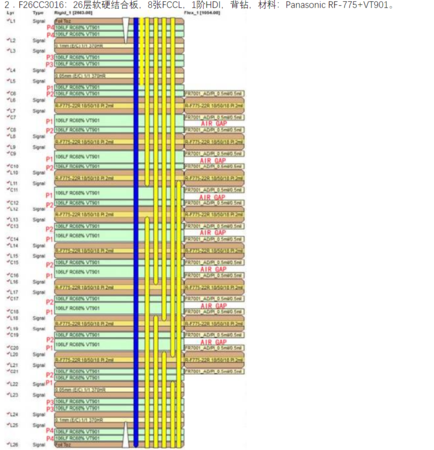

26 Layers polyimide material Rigid-flex board
Layer: 26
Surface treatment: ENIG
Material: PanasonicRF-775+VT901
Application: Medical
Min line width/space: 0.11mm/0.1mm
Special: POFV,Backing Drilling,8 layer FCCL

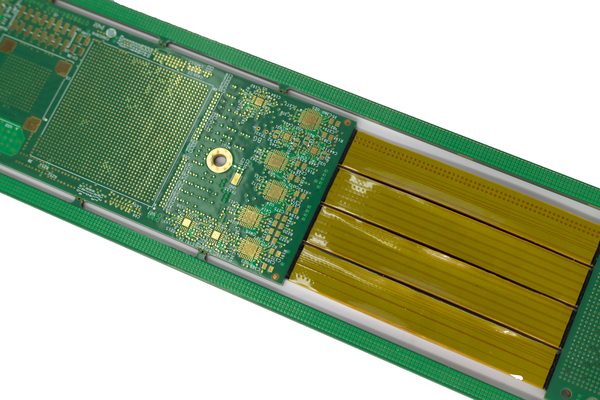

20 Layers Rigid-Flex board
Layer: 20
Surface treatment: ENIG
Material: S1000-2M+AP8535
Application: 3D Power
Min line width/space: 0.1mm/0.1mm
Special: Steeped Grooves, Depth Control Routing

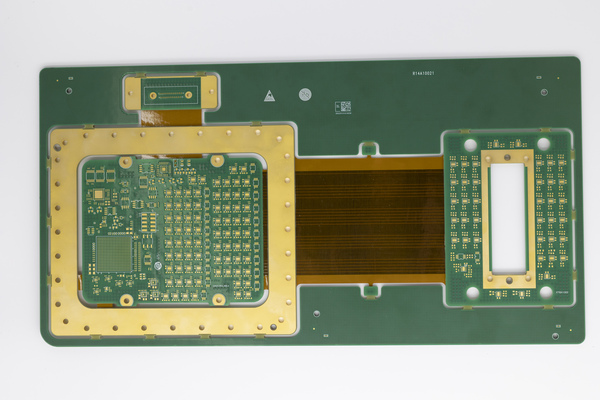

14 Layers Rigid-Flex POFV board
Layer: 14
Surface treatment: ENIG
Material: S1000-2M+AP8535
Application: Medical
Min line width/space: 0.15mm/0.15mm
Special: POFV
ATE Probe  Card
Layer: 8
Surface treatment: ENIG+Hard Gold
Material: IT-180A
Application: ATE Probe Card
Min line width/space: 0.15mm/0.15mm
Special: 4.8mm board thickness, hard gold plating

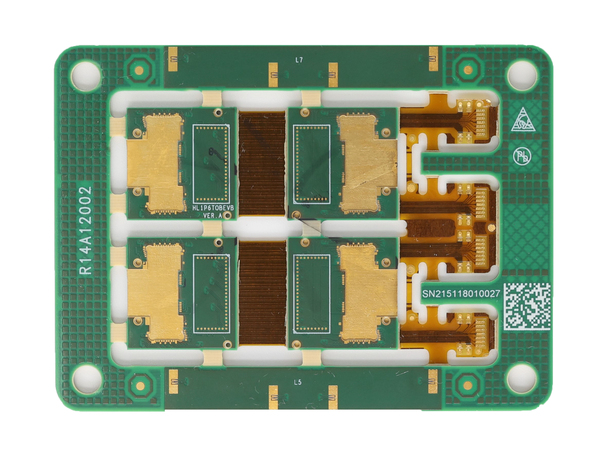

14 Layers Rigid-Flex board for Sensor
Layer: 14
Surface treatment: ENIG
Material: PanasonicRF-775+M6G
Application: Sensor
Min line width/space: 0.075mm/0.075mm
Special: 14 L Anylayer

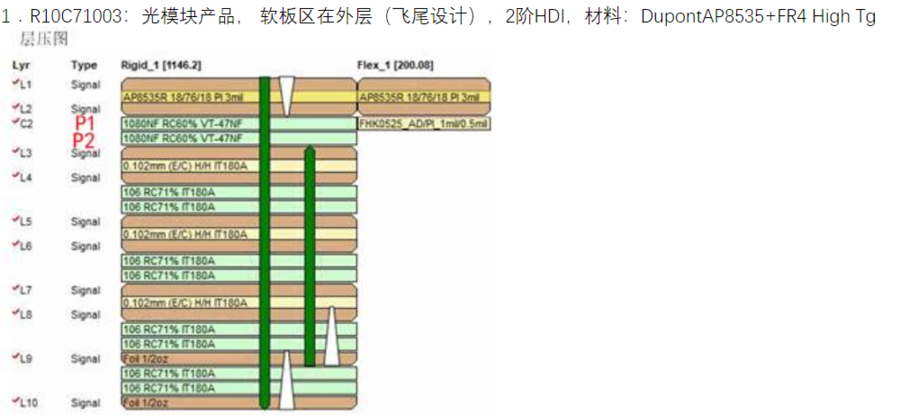

10 Layers Rigid-Flex board fro Optical Module
Layer: 10
Surface treatment: ENIG
Material: S1000-2M+AP8535
Application: Optical module
Min line width/space: 0.1mm/0.1mm
Special: Step HDI, Flex layer on outer layer

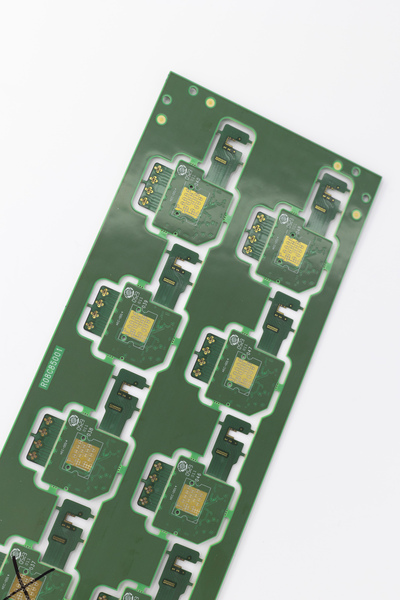

8 Layers Rigid-Flex board
Layer: 8
Surface treatment: ENIG
Material: PanasonicRF-775+M6G
Application: Medical
Min line width/space: 0.15mm/0.11mm
Special: PTH on Flex area, Copper stiffener
上一页 1 下一页

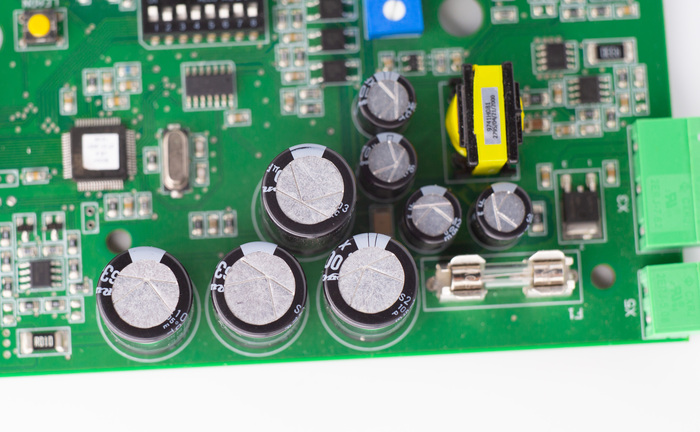

4 Layers Elevator Control board
Layer: 4
Surface treatment: HASL-LF
Material: S-1000H
Application: Elevator control board
Min line width/space: 0.15mm/0.11mm
Special: Heavy Copper,High reliability
上一页 1 下一页
